Measure and cut
The section bar - 2-D slices, sections and orthoimages
Cut a slice through the cloud at any storey, or a vertical section at any angle, from the section bar, see it live in 3-D, lock into an orthographic view to read it like a drawing, and save it as an image at full point density.
Cutting and viewing are free. Save PNG is Pro.
Part of Point cloud to floor plan, Gaussian splat to floor plan and CAD, Point cloud to CAD (DXF).

When to use it
To read a building like a plan before drawing one, to check a wall’s plumb or a floor’s level along a line, or to hand someone an orthoimage. For a finished, dimensioned drawing use the floor plan; the section tool is the quick look.
Step by step

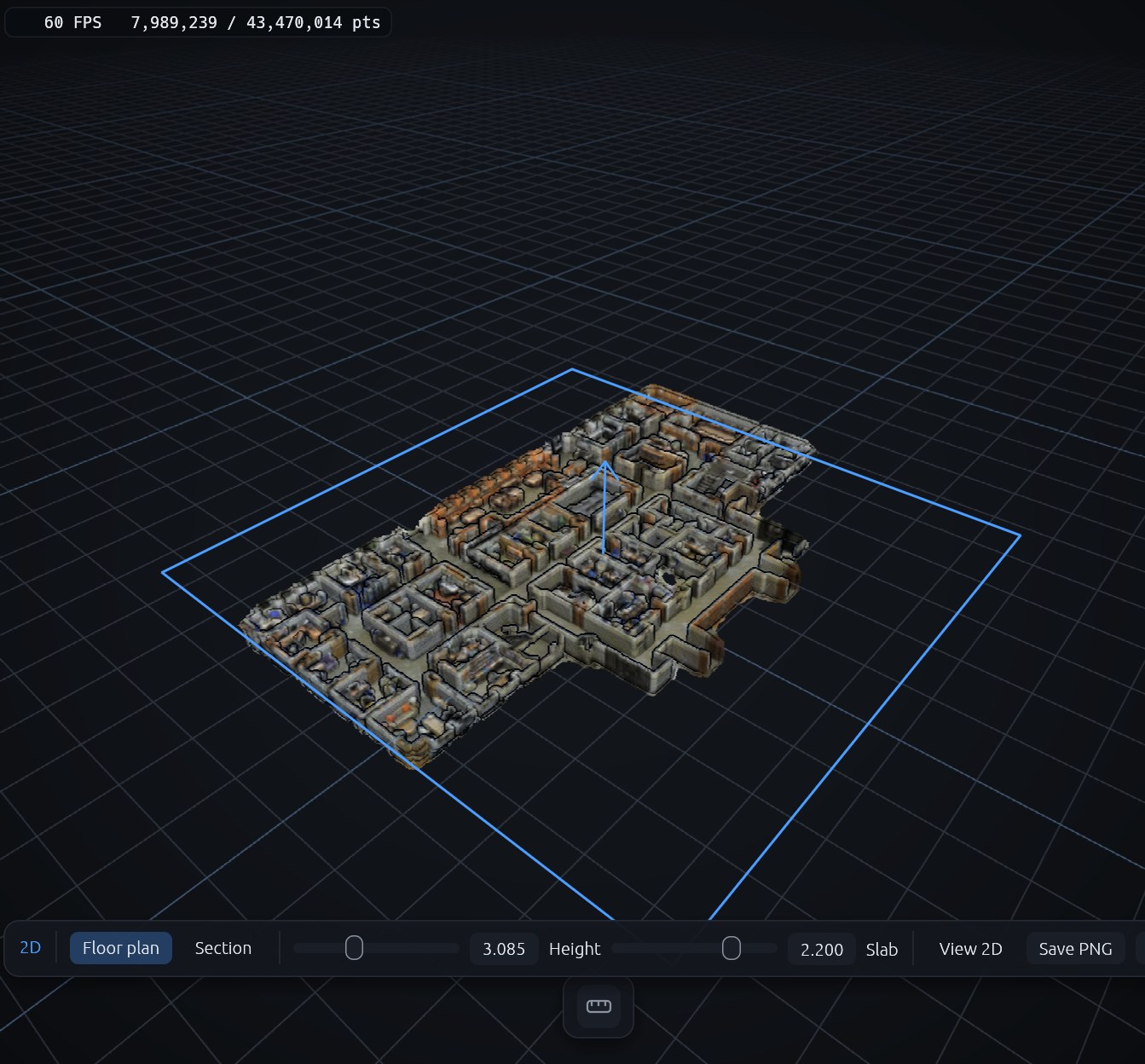

- Press 2D sections & floor plans in the toolbar. A slice appears through the cloud and the 2D section bar opens.
- Choose Floor plan (a horizontal cut, viewed from above) or Section (a vertical cut). For a section, pick N-S or E-W, or turn it with Rotate (0 to 180°).
- For a plan, when storeys were found, press a Storey button: it sets a 0.4 m slice centred 0.6 m above that storey’s floor, so walls and furniture show without the floor itself. The read-out beside it says where the middle of the slice is, and how far above the storey floor.
- Fine-tune with Position (where the cut is, in metres) and Thickness (the slice, half of it each side of the position). The slice is shown live in 3-D and holds still while you drag.
- Under layers, lay the Floor plan, Topo, Terrain, vector or DWG layers and Imagery over the cut.
- Press View 2D to lock into the orthographic view: drag to pan, wheel to zoom. On a plan cut where rooms were found, show Rooms, Labels (name and area) and Openings (a ring at each doorway). Press Esc to leave it.
- Measure in the locked view with the Measure tool, exactly as in 3-D.
- Press Save PNG to write the view as an orthoimage. Close the tool with its 🗙.

What it was measured at
Orthoimages are written with the long edge at the GPU’s maximum texture size, clamped between 2048 and 8192 px, at full point density.
Limits, stated
- An orthoimage is a picture of the points, not a drawing: no walls are extracted and nothing is dimensioned. For that, use Process › Floor plan….
- The slab is a cut through what was scanned; a wall the scanner did not see is not there.
Related questions
Is the floor plan really automatic?
Yes. Process > Floor plan… builds the scene graph, finds the rooms by flooding the empty space, extracts the walls between their measured faces with their openings, and draws a dimensioned plan with room areas, a scale bar, a north arrow and a title block, plus sections and elevations placed where they show the most. On a 43 million point survey the whole set takes about a second. Nothing needs tracing by hand.
More in the FAQ.
